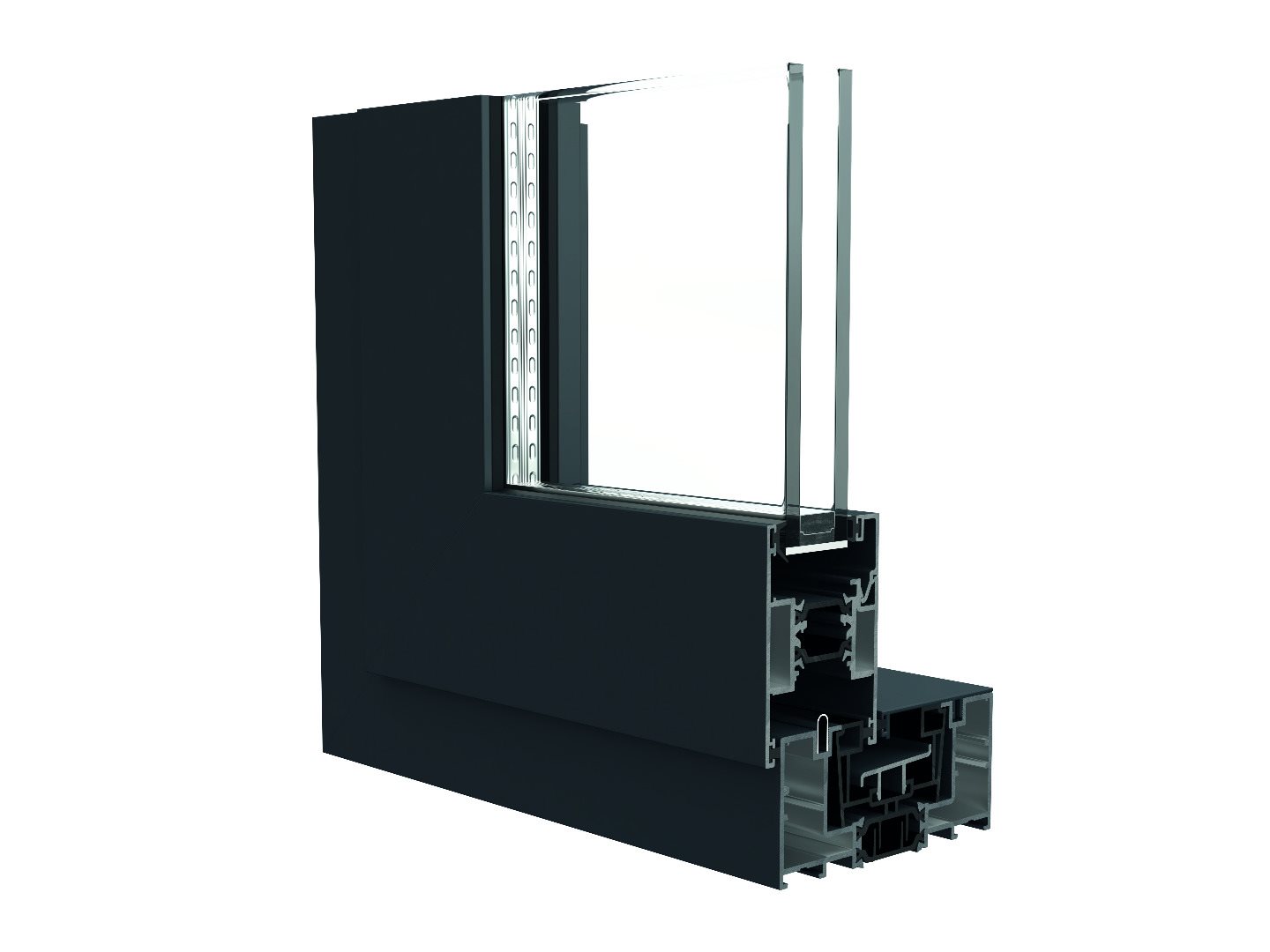

Visoglide Plus

Smarts Visoglide Plus sliding doors deliver exceptional performance, energy-efficiency and security. Featuring 35mm slim interlocks as standard to maximise the view.

These doors are tailored to your customers' precise requirements and offer a variety of configurations, including standard sliding and lift and slide options. The frame has an internal upstand for flush flooring.

Double or triple track options are available, along with the choice of 2,3 and 4 pane configurations, supporting sash weights up to 250kg.

As with all Smart products, there is a large choice of colours and finishes including dual colour.

Specifications & Features

  • 2, 3 or 4 pane options
  • PAS24:2016 using the BT lock
  • U value 1.5 W/m2K
    (using sealed unit 1.0 W/m2K)
  • C rating (using sealed unit 1.2 W/m2K)
  • 2 and 4 pane frame depth 117.5mm
  • 3 pane frame depth 184.5mm
  • Single or dual colour, marine quality polyester powder coat available
  • Flush fingerpull handles or D-handles
  • Interlock 35mm
  • Sightline, typically 117.5mm
  • Max sash weight of 250kgs

Our Stock Colours

White
Grey
Black
